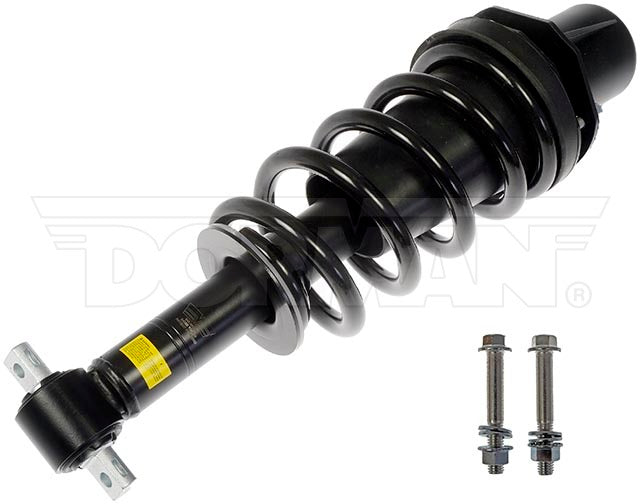

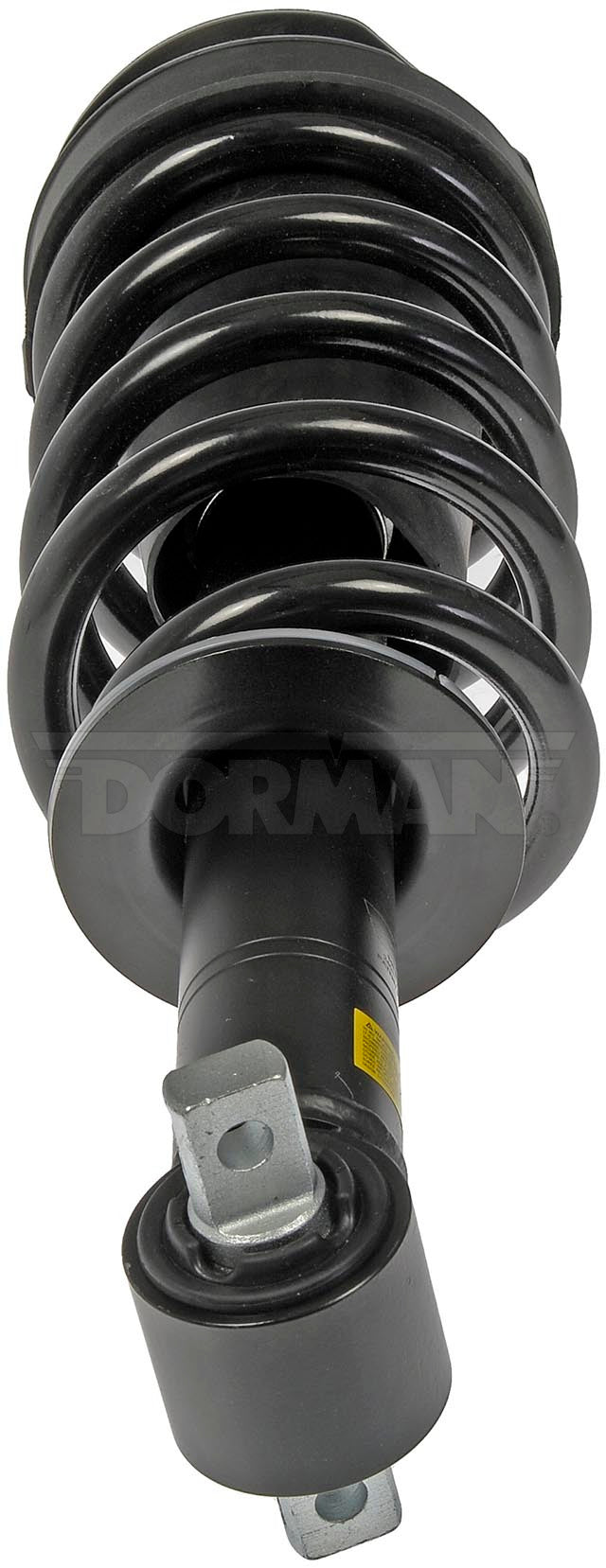

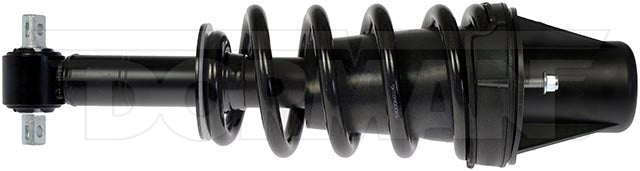

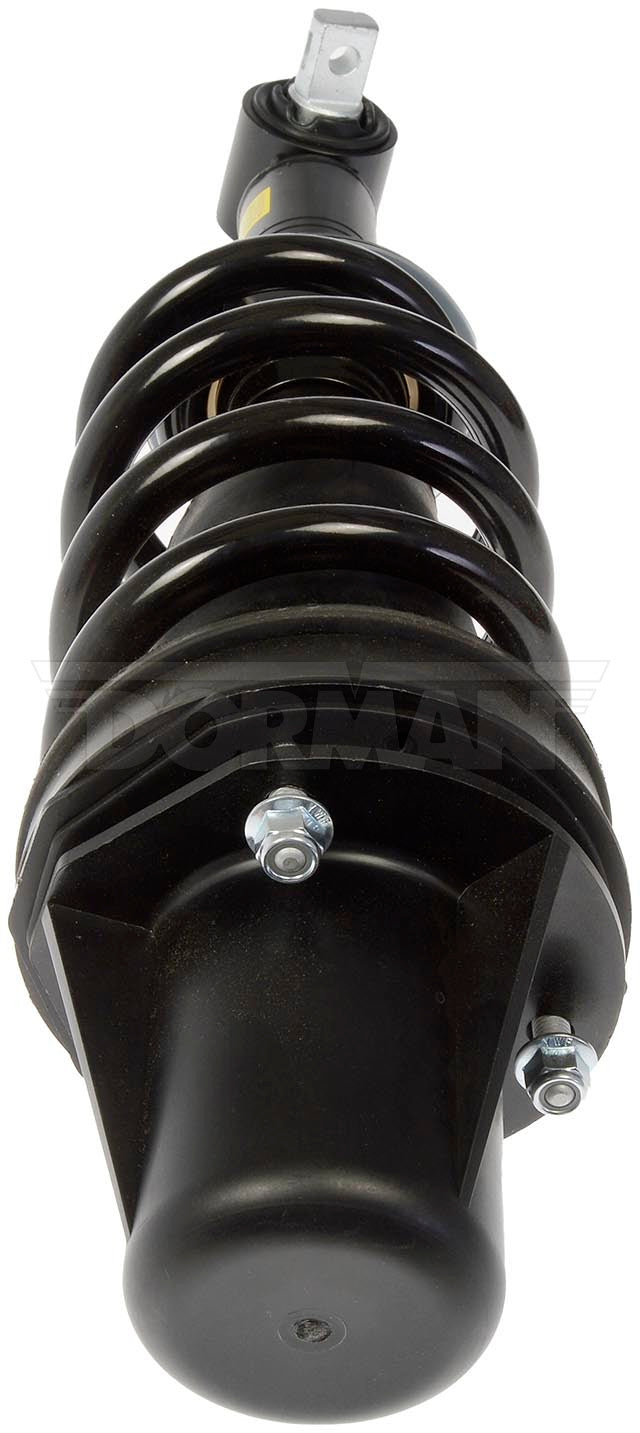

When an original equipment front strut and spring assembly fails on certain GMC, Chevrolet and Cadillac SUVs and trucks equipped with magnetic ride control, it's often due to fluid leaks that develop in the strut's top seal assembly. Over time and miles, the factory seals deteriorate from the friction, heat and fluid pressure generated during every compression and rebound cycle of the strut. Ultimately that continuous cyclic load leads to seal failure and with it a loss of damping effectiveness and overall suspension performance, and potentially a failed state inspection. This Dorman OE FIX loaded magnetic strut assembly features an innovative upgraded top seal design that prevents this common and costly cause of strut failure. Our patent-pending top seal block assembly absorbs impact pressure better by more effectively and efficiently relieving and restoring cyclic fluid pressure on demand, virtually eliminating the relentless and damaging internal fluid pressurization inherent in the original equipment's design. In addition, this assembly features more durable mounting points to help ensure long service life under the toughest conditions. And because this is a pre-assembled loaded assembly, installation does not require the risk and hassle of using a spring compressor.
| Active or Passive Suspension: | Active |
|---|---|
| Adjustable: | Yes |
| Adjustable Compression: | Yes |
| Adjustable Damping: | Yes |
| Adjustable Rebound: | Yes |
| Adjustable Ride Height: | No |
| Air Adjustable: | No |
| Bladder Heavy Duty Crimping Rings Included: | No |
| Bladder Sleeve(s) Included: | No |
| Bladder(s) Included: | No |
| Body Diameter: | 50 mm |
| Body Length: | 547.1 mm |
| Boot Included: | Yes |
| Coil Spring Included: | Yes |
| Coil Spring Insulator(s) Included: | Yes |
| Compressed Length: | 128 mm |
| Cylinder Finish: | Painted |
| Cylinder Material: | Steel |
| Cylinder Outside Diameter: | 50 mm |
| Damping Adjustment Type: | Electronic |
| Dust Shield Included: | Yes |
| Gas Charged: | Yes |
| Grade Type: | Standard Replacement |
| Includes Bump Stop: | Yes |
| Internal Construction Type: | Single Tube |
| Internal Rebound Spring: | No |
| Lower Mount Type: | T-Bar |
| Mounting Hardware Included: | Yes |

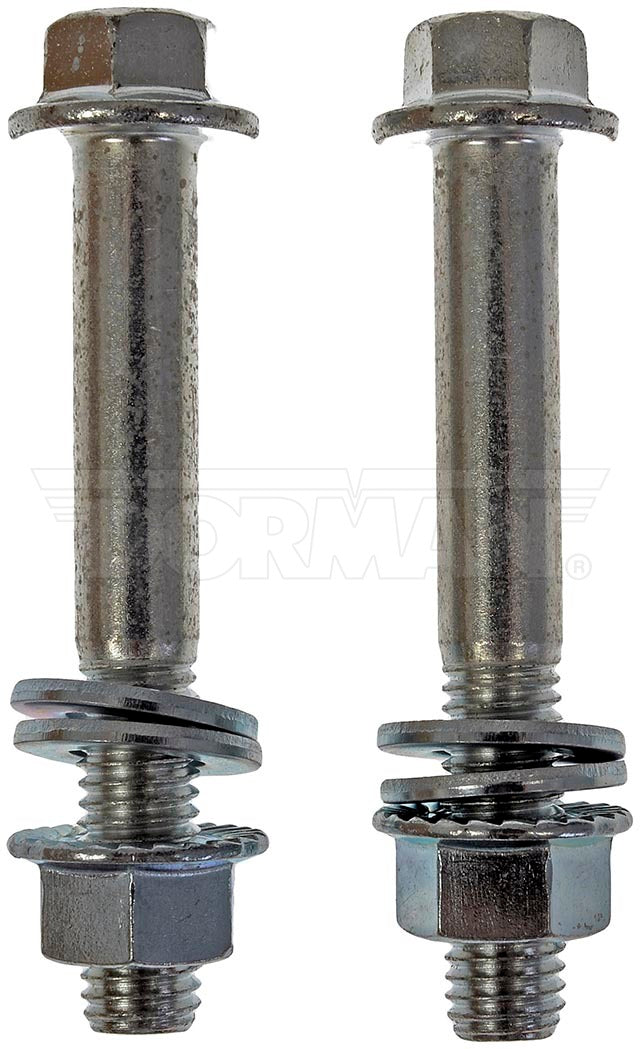

| Package Contents: | 1 Magnetic Shock; 2 Bolts; 2 Nuts; 4 Washers |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Progressive Spring Rate: | No |
| Relaxed Length: | 547.1 mm |
| Remote Reservoir: | No |
| Self-Leveling: | Yes |
| Selling Package Quantity UOM: | Piece |
| Shaft Material: | Steel |
| Spring Coil Quantity: | 1 |
| Spring Material: | Steel |
| Spring Rate: | 93.2 N/mm |
| Strut Mount Insulator(s) Included: | Yes |
| Strut Mount(s) Included: | Yes |
| Suspension Type: | Spring |
| Travel Length: | 160 mm |
| Upper Mount Type: | Bolt |
| Valving Type: | Progressive |
| 11548570 | GENERAL MOTORS |
|---|---|
| 11561429 | GENERAL MOTORS |
| 15815517 | GENERAL MOTORS |
| 15815519 | GENERAL MOTORS |
| 15886463 | GENERAL MOTORS |
| 19300066 | GENERAL MOTORS |
| 19353951 | GENERAL MOTORS |
| 20841899 | GENERAL MOTORS |
| 20842473 | GENERAL MOTORS |
| 25940740 | GENERAL MOTORS |
| 25940741 | GENERAL MOTORS |
| 25940743 | GENERAL MOTORS |
| 84061243 | GENERAL MOTORS |
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2007-2014 | Cadillac | Escalade | Front | Improved Design; w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2014 | Cadillac | Escalade ESV | Front | Improved Design; w/RPO Code Z95 (MagneRide Suspension) | |
| 2014 | Chevrolet | Suburban (Mexico) | Front | Improved Design; w/RPO Code Z55 (Real Time Damping); w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2014 | Chevrolet | Suburban 1500 | Front | Improved Design; w/RPO Code Z55 (Real Time Damping); w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2014 | Chevrolet | Tahoe | Front | Improved Design; w/RPO Code Z55 (Real Time Damping); w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2014 | GMC | Yukon | Front | Improved Design; w/RPO Code Z55 (Real Time Damping); w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2014 | GMC | Yukon XL 1500 | Front | Improved Design; w/RPO Code Z55 (Real Time Damping); w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2013 | Cadillac | Escalade EXT | Front | Improved Design; w/RPO Code Z95 (MagneRide Suspension) | |
| 2007-2013 | Chevrolet | Avalanche | Front | Improved Design; w/RPO Code Z95 (MagneRide Suspension) |
