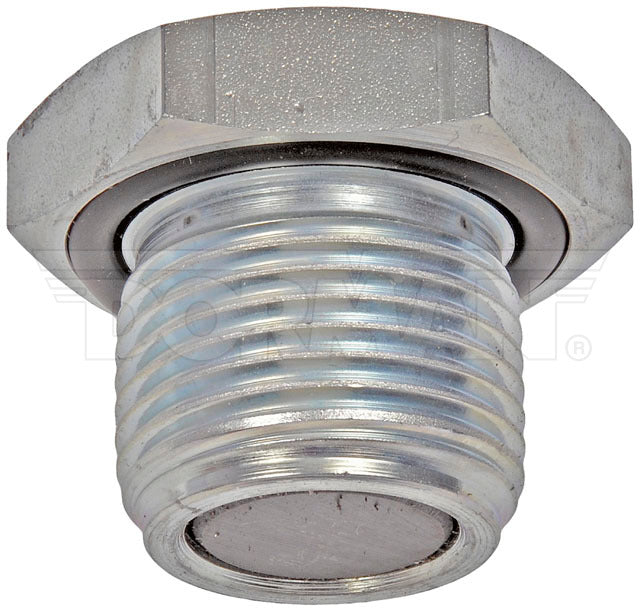

This engine oil drain plug is designed to match the fit and function of an original equipment plug on specified vehicles. It is engineered to replace a missing or damaged plug and help ensure a secure seal.
| Bolt Grade: | 3 |
|---|---|
| Color: | Silver |
| Describe Type: | Magnetic-Metal Drain Plug |
| Drain Method: | Conventional |
| Gasket Or Seal Included: | Yes |
| Gasket Type: | O-Ring |
| Head Drive Type: | Hex |
| Head Tool Size: | 1.5 in |
| Length: | 0.87 in |
| Magnetic: | Yes |
| Material: | Steel |
| Oversized Thread: | No |
| Package Contents: | 1 Oil Drain Plug |
| SAE or Metric: | SAE |
| Socket Points: | M6 -1.0 |
| Special Tool Required: | No |
| Thread Diameter: | 1-1/8 in |
| Thread Size: | 1-1/8 x 12 |
| Thread Type: | Fine |
| Threads Per Inch: | 12 |
| Package Quantity: | 1 |
| Brand: | Dorman - HD Solutions |
| Packaging Type: | Clamshell |
| Thread Pitch: | 12 |
| 9X6451 | CATERPILLAR |
|---|
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2008-2013 | Kenworth | T660 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2001-2004 | Freightliner | Columbia | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2007-2008 | Freightliner | Columbia | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2011-2012 | Freightliner | Columbia | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2005-2012 | Kenworth | T800 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2006-2012 | Peterbilt | 386 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2011 | Kenworth | C500 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2009 | Kenworth | T2000 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2011 | Kenworth | T2000 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2011 | Kenworth | T800 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2011 | Kenworth | W900 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2008-2011 | Peterbilt | 365 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2008-2011 | Peterbilt | 367 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2008-2011 | Peterbilt | 384 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2003 | Peterbilt | 387 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2011 | Peterbilt | 387 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2008-2011 | Peterbilt | 388 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2004-2010 | Freightliner | Columbia | Engine Desg. C13; EngineMfr Caterpillar | ||
| 1989-1997 | Kenworth | T800 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 2010 | Kenworth | T800 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 2004-2009 | Freightliner | Century Class | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2009 | International | 8000 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2008-2009 | Peterbilt | 320 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2008 | Kenworth | C500 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003 | Peterbilt | 357 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2008 | Peterbilt | 357 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2007 | Blue Bird | Wanderlodge | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2004-2007 | Freightliner | Classic | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2004-2007 | Freightliner | Columbia | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2007 | International | 8000 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2007 | Kenworth | T600A | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2007 | Kenworth | T600A | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2007 | Kenworth | W900 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2007 | Peterbilt | 320 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2007 | Peterbilt | 357 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003-2007 | Peterbilt | 378 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003-2007 | Peterbilt | 378 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2004-2007 | Peterbilt | 379 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003-2007 | Peterbilt | 379 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2007 | Peterbilt | 385 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003 | Peterbilt | 385 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2007 | Peterbilt | 385 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2001-2006 | Freightliner | Condor | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2004-2006 | Freightliner | Condor | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2001-2006 | Freightliner | Condor | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2005-2006 | Freightliner | Condor | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005-2006 | Kenworth | K100E | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005-2006 | Peterbilt | 362 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2003-2006 | Peterbilt | 362 | Engine Desg. C13; EngineMfr Caterpillar | ||
| 2005 | Kenworth | T2000 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 1996-2005 | Peterbilt | 385 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2003 | Peterbilt | 387 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2005 | Peterbilt | 387 | Engine Desg. C11; EngineMfr Caterpillar | ||
| 2004 | Blue Bird | Commercial Bus | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1999-2004 | Freightliner | Argosy | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-2004 | Freightliner | Century Class | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-2004 | Freightliner | Century Class | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2003-2004 | Freightliner | Classic | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1998-2004 | International | 8000 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2004 | International | 8000 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2000-2004 | Peterbilt | 320 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2004 | Peterbilt | 357 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2004 | Peterbilt | 357 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-2002 | Peterbilt | 362 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2004 | Peterbilt | 362 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-2004 | Peterbilt | 378 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-2004 | Peterbilt | 379 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-2004 | Peterbilt | 385 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2000-2004 | Peterbilt | 387 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 2000-2001 | Freightliner | Argosy | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2003 | Freightliner | Argosy | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2003 | Freightliner | Columbia | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 2001-2003 | Freightliner | Columbia | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2003 | Peterbilt | 378 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2003 | Peterbilt | 379 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2000 | Kenworth | T800 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2002 | Kenworth | T800 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-2002 | Peterbilt | 362 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 2001 | Freightliner | Century Class | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Kenworth | T600A | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 2001 | Kenworth | T600A | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1996-2001 | Peterbilt | 377 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-2001 | Peterbilt | 377 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1990-1997 | Kenworth | W900 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 2000 | Kenworth | W900 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1998-1999 | Kenworth | T2000 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-1999 | Kenworth | T2000 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-1999 | Kenworth | T600A | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-1999 | Kenworth | T600A | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-1999 | Kenworth | T800 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-1999 | Kenworth | W900 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-1999 | Kenworth | W900 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-1998 | Ford | A9513 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-1998 | Ford | A9513 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-1998 | Ford | AT9513 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1997-1998 | Ford | AT9513 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-1998 | Ford | AT9522 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1997-1998 | Kenworth | C500 | Engine Desg. C12; EngineMfr Caterpillar | ||
| 1996-1997 | Ford | A9513 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1997 | Ford | A9522 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1996-1997 | Ford | AT9513 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1997 | Ford | AT9522 | Engine Desg. C10; EngineMfr Caterpillar | ||
| 1990-1997 | International | 8000 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Kenworth | T400 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Peterbilt | 357 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Peterbilt | 362 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Peterbilt | 377 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Peterbilt | 378 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1997 | Peterbilt | 379 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1995-1997 | Peterbilt | 385 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1991-1997 | Western Star | 4800 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1991-1997 | Western Star | 4900 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1993-1996 | Kenworth | T450 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1996 | Peterbilt | 375 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1990-1995 | Kenworth | K100E | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1989-1995 | Western Star | 3800 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1990-1994 | Kenworth | C500 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1993 | Peterbilt | 320 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1990-1991 | Peterbilt | 372 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1993 | Peterbilt | 372 | Engine Desg. 3176; EngineMfr Caterpillar | ||
| 1990 | Peterbilt | 376 | Engine Desg. 3176; EngineMfr Caterpillar |
Buy with confidence – If you encounter any issues with your Dorman product, simply reach out to us. We are committed to ensuring your satisfaction and will assist with any return or exchange requests that meet our policy guidelines.
Dorman is a trusted leader in OE-style replacement parts, offering precision-engineered solutions for reliable performance. Each part undergoes rigorous testing to ensure durability, safety, and a seamless fit. Designed as a cost-effective alternative to OEM parts, Dorman provides high-quality replacements backed by expert engineering. Choose Dorman for dependable, long-lasting automotive solutions.
We assure you that we ship all the parcels received on the same day till 12 pm standard central time.
We send shipment tracking numbers via email. It is sent to the email address you provided in your order. If you would like to change the email address you provided, Feel free to contact our support team at (support@part-synergy.com).
We are here to serve you. If there is any item that is damaged or needs to be exchanged or returned for any reason, please contact our support team(support@part-synergy.com). Please read our return and exchange policy to learn more about this.
All orders are free of shipment costs. The cost mentioned on the website is for getting it to your doorstep.
Please do get in touch with our customer support as they may be able to provide you with a return label which will cost you much less. But if you still need to send an item back, here is our shipping address.
| 1 Day | 2 Days | 3 Days | 4 Days | 5 Days | 6 Days | 7+ Days | |
|---|---|---|---|---|---|---|---|
| If Picked Up On | Will be delivered by | ||||||
| Monday | Tue | Wed | Thu | Fri | Mon@ | Tue@ | Wed= |
| Tuesday | Wed | Thu | Fri | Mon | Tue@ | Wed@ | Thu= |
| Wednesday | Thu | Fri | Sat | Tue | Wed@ | Thu@ | Fri= |
| Thursday | Fri | Sat | Sun^ | Wed | Thu@ | Fri@ | Mon= |
| Friday | Sat | Sun^ | Mon | Thu | Fri@ | Mon@ | Tue= |
| Saturday | Tue* | Wed | Thu | Fri | Mon@ | Tue@ | Wed= |
| Sunday | Tue** | Wed | Thu | Fri | Mon@ | Tue@ | Wed= |
*Sunday^ delivery if the shipper is enrolled in weekend spotted trailer pickups
**Monday delivery if the shipper is enrolled in weekend spotted trailer pickups
^Monday if not a Sunday eligible ZIP code
@ The following week
= Earliest possible delivery the following week
This map illustrates service schedules in business days as of April 2022 for FedEx Home Delivery shipments
© 2018 FedEx. All rights reserved.
The Service Maps and charts are a general representations of transit. For more accurate transit quotes visit Shipping Rates and Delivery Times on fedex.com
Please Note: Packages picked up from a residence may have one additional transit day. For faster returns please drop off at a staffed FedEx location.
Great shipping. Product worked as it should
Super fast shipping and a exact match to my camry se. Will be using them in future.
The wheel was the perfect replacement and matched my other wheels. The shipper choice of Fed Ex ground, not so good. Your website indicated UPS ground and my request to use them with my order went unnoticed.
Couldn't have had better service and the rim was perfect!
One of the cheapest options for the same product. No hidden fees like other websites, and free fast delivery!
Quick shipping, right productand at a great price. You all have set yourselves up for success with the way you do business.
Wheel is great fast shipping
Fast delivery with good protection on parts
I loved the produc just like the pictures, i 100% recommend buying from this company, and i will be buying again in the future :)
Item as described fast and easy order thank you
Perfect fit good price fast delivery
great! turn around/delivery spot on. I'm gonna order another two wheels. Just wanted make sure it was a match. Swapped out the tire on the new rim and it balanced out zero. That's amazing.
Exactly what I ordered for the restoration of my 2004 Crown Vicky
It is what it is. Replacement takes 2 minutes and low power issues solved.
